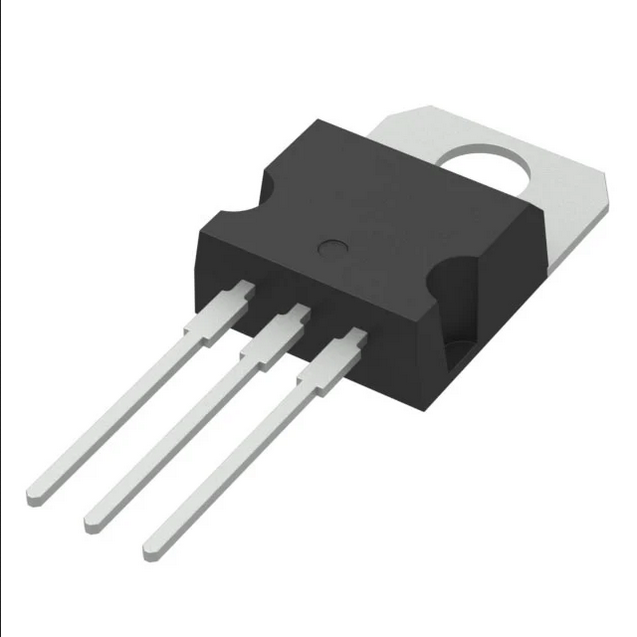

STP100NF04-VBVBsemi/微碧TO220
57853
TO220；N—Channel沟道,40V；110A；RDS(ON)=6mΩ@VGS=10V,VGS=20V；Vth=1.2~2.5V；
1Fet类型1：N 通道
2漏源极电压(vdss)2：40V
3电流-连续漏极(id)3：120A（Tc）
4Vgs(最大值)4：±20V
5功率-最大值：300W（Tc）
6工作温度：-55°C ~ 175°C（TJ）
|
