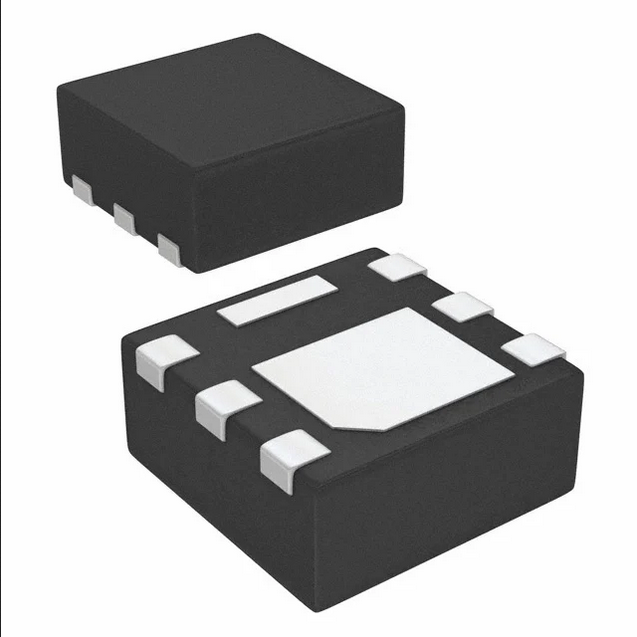

IRFHS9301TRPBF-VBVBsemi/微碧DFN6(2X2)
56459
QFN6(2X2)；P—Channel沟道,-20V；-10A；RDS(ON)=30mΩ@VGS=4.5V,VGS=12V；Vth=-0.4~-1V；
1Fet类型1：P 通道
2漏源极电压(vdss)2：30V
3电流-连续漏极(id)3：6A（Ta），13A（Tc）
4Vgs(最大值)4：±20V
5功率-最大值：2.1W（Ta）
6工作温度：-55°C ~ 150°C（TJ）
|
